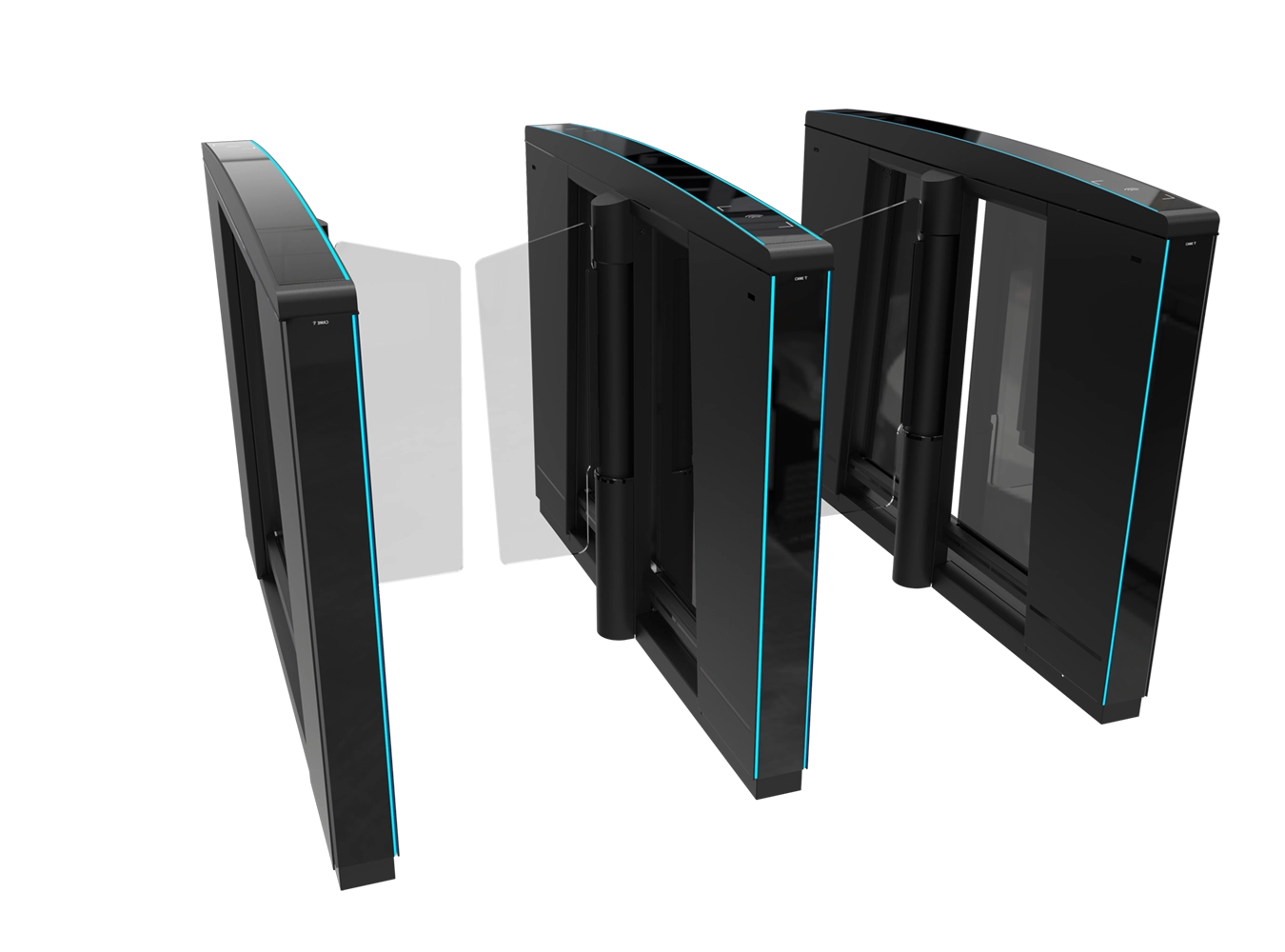

PG 04 55 PADDLE GATE

  • Equipped with dynamic status indicators on side and top, it is designed to operate always paired (master and slave).
  • 14-beam integrated sensors monitor users passing through the lane.
  • Leaves are directly driven by a brushless motor controlled via push buttons and OLED display.
  • The product is available in single, double and combined versions and supplied with a floor mounting template.
  • In case of power failure, the leaves open using the batteries (included) in the direction set during installation, releasing the passage.
Categories: ,

Description

Bi-directional motorized speed gate with swing leaves, 550 mm passage wide. Galvanized steel chassis finished in black powder coating with soft touch effect; top and front panels in black tempered glass and leaves in tempered glass.

Key Features

  • Selection of the individual person’s passage.
  • Painted steel structure and tempered glass doors.
  • Direct-drive brushless motor.
  • Electronic control card with OLED display.
  • Available in single and double versions (for several gates in parallel).
  • Dynamic status and passage indicators.
  • Selectable free/controlled operation mode.
  • Provision for housing third-party readers.
  • Compatibility with any access control via input/output with dry contacts.
  • Optional modules for connection via RS232, RS485, TCP/IP.

Upgrade your access control system with the efficient PG 04 55 Paddle Gate.

Download Datasheet

Additional information

BRAND

CAME
